Lemken Europal

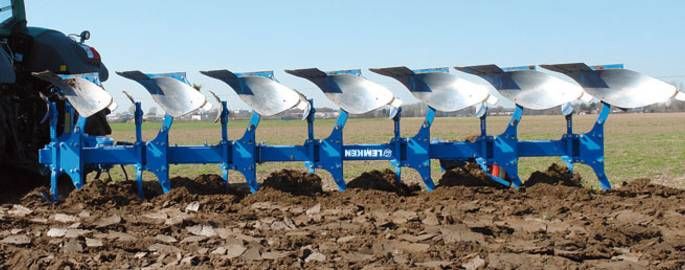

Mounted reversible plough EurOpal

Perfect technology for improved work quality

The two to seven furrow EurOpal mounted ploughs are characterised by high strength at low weight. They are easy to pull and consequently very efficient to use.

  • The Optiquick adjustment centre allows the independent adjustment of front furrow width and pull point for precise ploughing without lateral forces.
  • The adjusting brackets are bolted to the thick box section made from alloy fine grain steel resulting in high stability, reliable endurance strength, and fitting accuracy.
  • The skimmers can be adjusted without tools and are therefore easy to use.
  • The height-adjustable cross shaft can be adjusted to any conditions and thus  guarantees the perfect position of the tractor lower links.
  • The short and strong turnover axle, in the headstock, is not compromised by welded joints and can therefore withstand the highest impact and permanent loads.
  • EurOpal 7 N 90 (Frame 120 x 120 x 10 mm)
    Numbers of furrows 3 3+1 4 4+1
    Working width per furrow (cm) 30,35,40,45 30,35,40,45 30,35,40,45 30,35,40,45
    Interbody clearance (cm) 90 90 90 90
    Weight (kg) 753 959 949 1.155
    Weight with mech. overload safty device (kg) 947 1.210 1.200 1.463
    Weight with hyd. overload safty device (kg) 953 1.218 1.208 1.473
    kW 51 - 74 59 - 96 59 - 96 66 - 118
    HP 70 - 100 80 - 130 80 - 130 90 - 160
