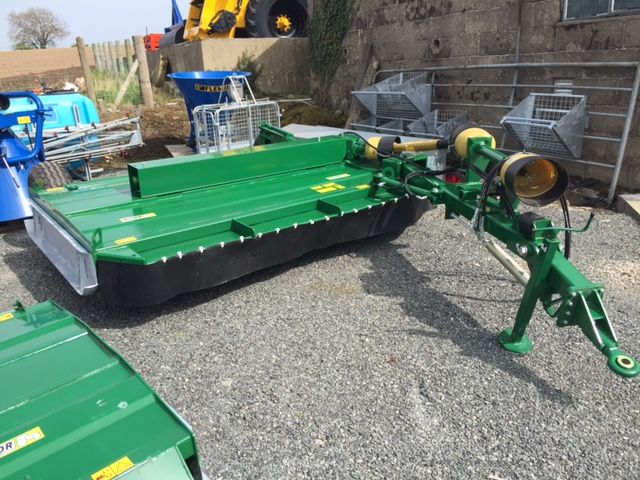

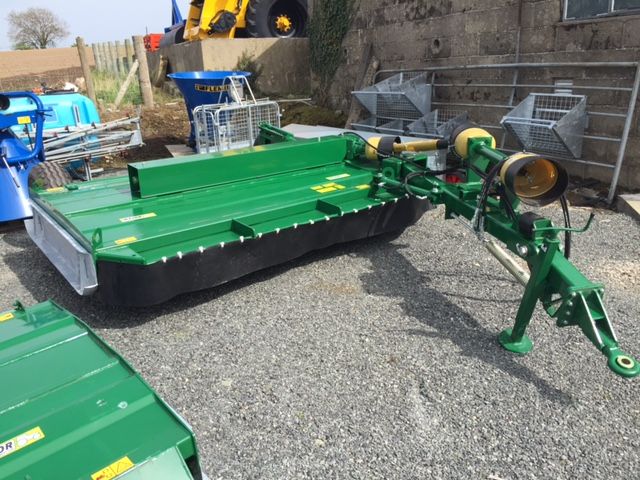

Major Trailed topper 9FTGD-HD

Major 9ft Trailed Topper c/w wide angle PTO

The Major trailed topper is a fully offset gear driven machine. It is offest for working and is folded into transport position hydraulically from the tractor seat. The rotors are timed with wadh other and have an overlap of 3 inches. The blades rotate in opposite directions to each other and spreads the cut grass evenly behind the machine. As the machine is fully offset there is no trampling of the pasture prior to cutting. The cutting height is set at the desired level by moving the adjustable side skids to the appropriate position. There is a limit stop on the ram which controls the rear axle. When the operator reaches the field, the machine is offset then lowered and topping can commence. This reduces downtime.

Features


-Heavy duty transmission

-Rubber shock absorbers between rotor gearboxes

-Full hyd offset control

- Hyd brakeaway system

- High lift twin-cut Procut swinging blades

- wide angle PTO shaft
